Product Features:

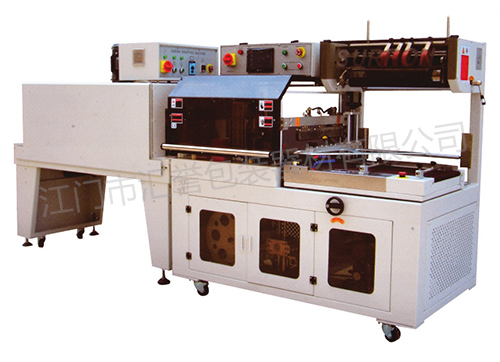

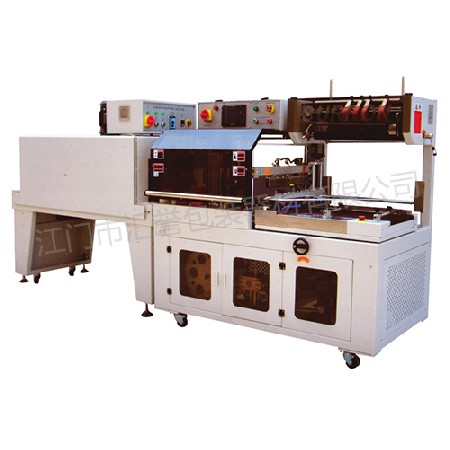

☆HY-3015L is an economical edge sealing and packaging machine that is fully automated and unmanned by our company. It is widely used in the assembly line operation of large-scale production packagingDynamic feeding and conveyingTheedge bandingShrink all at onceaccomplishHigh work efficiency, suitable for products of different heights and widths:

The horizontal blade of the sealing part adopts a vertical 9-zone movement, and the vertical blade adopts a constant temperature side sealing blade, with a straight and firm sealing line. It can ensure that the sealing line is in the middle position of the product, achieving a good sealing effect: suitable for products with different packaging specifications and sizes. Simply adjust with the handwheel to increase reliability and make it easier to operate;

☆This machine adopts Schneider PLC programmable logic controller with safety protection and alarm device. The sealing and cutting system can continuously and smoothly perform sealing actions without replacement, and the maintenance operation is very easy;

☆The feeding length control is achieved through the combination of electric eye 1, measurement and timer to accurately control the degree of adhesive film, making the shrinkage effect easier to control;

☆Install horizontal and vertical electric eyes in the west group to facilitate switching and selection, making it easy to complete sealing and packaging operations for thin or small packaging materials;

☆Automatic winding of waste materials, controlled by a separate motor, will not be too loose or too tight to draw, and the waste materials are easy to disassemble;

☆ Can be customized according to customer needs. Add automatic mouth blowing function;

☆Additional power feeding lines and rear non powered storage platforms can be selected as needed:
